名詞和標準符合介紹-電能質量產品系列

名詞解釋

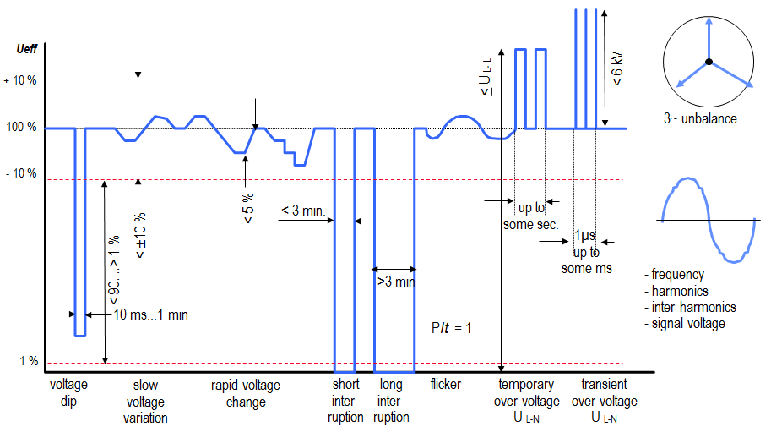

En 50160 公共供電系統的電壓特性

哪些是需要被監測的？

監測參數	評估方式
Power frequency	statistic
Supply voltage variation	statistic
Rapid voltage change	event
Supply voltage unbalance	statistic
Flicker (IEC 61000-4-15)	statistic
Voltage dips (sags) and swells	event
Short or long interruption	event
Transient voltages	event
Mains signalling voltage (ripple control) on the supply voltage	periodic rec.

En 50160 公共供電系統的電壓特性

LV (low voltage),Un≤1kV

MV (medium voltage),1kV ＜Un ≤36kV

HV (high voltage), 36kV＜Un ≤135kV

Un, nominal voltage of the system,系統額定電壓

Uc, declared supply voltage,申明的供電電壓

Supply voltage: The phase to phase or phase to neutral voltage at the supply terminals.

供電電壓，即公共耦合點（如安裝的主要電源供應點）的線對線或線對中性線電壓。

Utilization voltage: The phase to phase or phase to neutral voltage at the outlets or at the terminals of equipment.

用電電壓，即電氣設備插頭或端子處的線對線或線對中性線電壓。

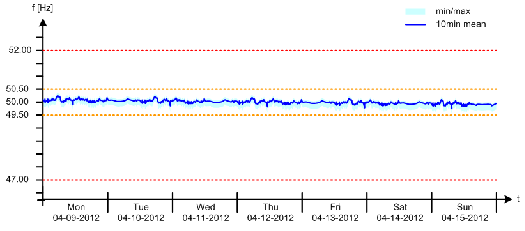

☆ Power frequency 電力系統頻率

造成原因：斷開電源，連接/斷開大型負載等

Power frequency 電力系統頻率

10s 內測量到的基波平均值

互聯電網：

一年的99.5%時間允許偏差±1%

完整時間允許偏差+4%/-6%

孤立電網：

一周的95%時間允許偏差±2%

完整時間允許偏差±15%

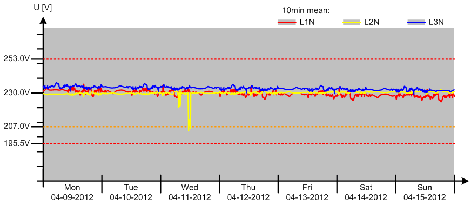

☆ Supply voltage variations 供電電壓偏差

造成原因：負載變化，通過自動調壓器進行補償時

Supply voltage variations 供電電壓偏差

10min 平均rms值

低壓系統：

一周的95%以上時間允許偏差±10%

完整時間允許偏差+10%/-15%

中壓系統：

一周的99%以上時間允許偏差±10%

完整時間允許偏差±15%

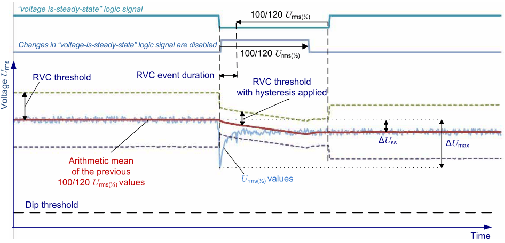

☆ Rapid voltage change 電壓的快速變化

造成原因：由客戶設施中的負載變化或系統中的開關操作引起

Rapid voltage change 電壓的快速變化

基于U rms(1/2)

低壓系統：

正常運行，5%Un以內

一天出現幾次持續時間短，10%Un

一周的95%時間Plt不大于1

中壓系統：

正常運行，4%Uc以內

一天出現幾次持續時間短，6%Uc

一周的95%時間Plt不大于1

RVC 限值/滯后可編程定義

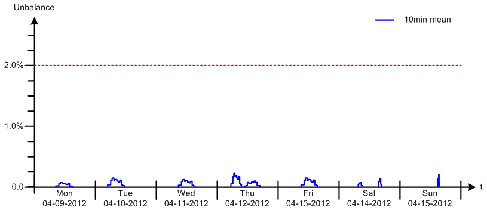

☆ Supply voltage unbalance 供電電壓不平衡

造成原因：一相和兩相負載分布不均

Supply voltage unbalance 供電電壓不平衡

10min 平均rms值

一周的95%時間負序電壓/正序< 2%

某些地區< 3%

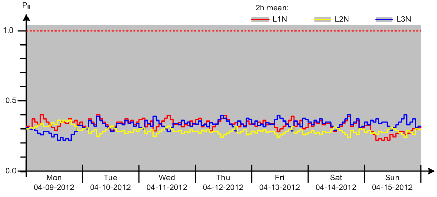

☆ Flicker 閃變

造成原因：負載頻繁切換

Flicker 閃變

2H 間隔（平均12個Pst值）

一周的95%時間Plt ≤ 1

測量電壓波動

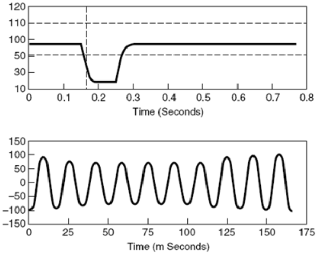

☆ Voltage dips(sags) 電壓暫降

造成原因：電網發生短路故障，大功率電動機等起動

Voltage dips(sags) 電壓暫降

U rms(1/2) = 1 … 90% Uc

持續時間 1min＞t ≥ 20ms

遲滯: 2%

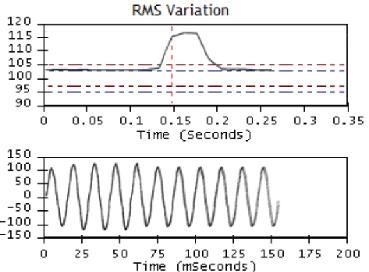

☆ Voltage swells 電壓暫升

造成原因：發生接地故障，大功率負荷退出和雷電沖擊等

Voltage swells 電壓暫升

U rms(1/2) ＞110% Uc

持續時間 1min＞t ≥ 20ms

遲滯: 2%

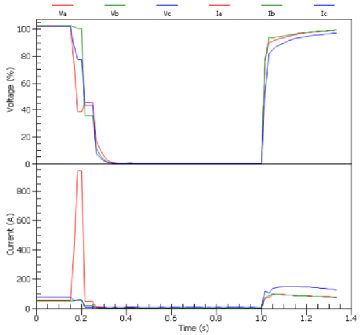

☆ Voltage interruption 電壓中斷

造成原因：直接短路，斷路，誤跳閘，甩負荷等

Voltage interruption 電壓中斷

U rms(1/2) ＜0…10% Uc

持續時間 3min＞t ≥ 20ms

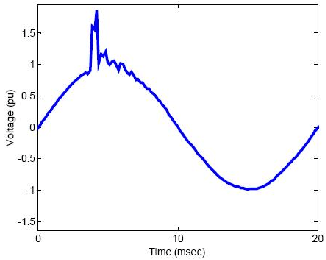

☆ Transient overvoltage 瞬態過電壓

造成原因：雷電沖擊，開關切換等

Transient overvoltage 瞬態過電壓

電壓＜6kV

上升時間[μs] … [ms]

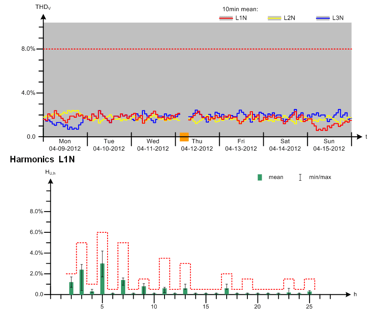

☆ Harmonics and THD 諧波和總諧波畸變率

造成原因：非線性負載，如變頻器，整流器等

Harmonics and THD 諧波和總諧波畸變率

10分鐘平均，限值如下表

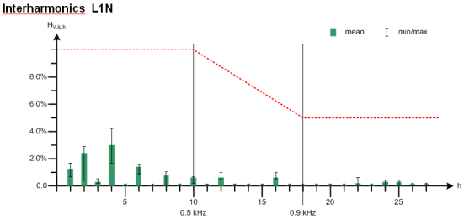

☆ Interharmonics and mains signalling voltage 間諧波和電網信號電壓(紋波控制)

造成原因：變頻器和類似控制設備等

Interharmonics and mains signalling voltage 間諧波和電網信號電壓(紋波控制)

間諧波：尚待考慮

電網信號電壓（工頻電壓上疊加的傳輸信號電壓）：

一天的99%時間內，信號電壓的3s平均值不得大于規定限值。

500hz以下幅值小于9%Un

900-9kHz幅值小于5%Un

PQDIF (Power quality data interchange format)

電能質量數據交換格式

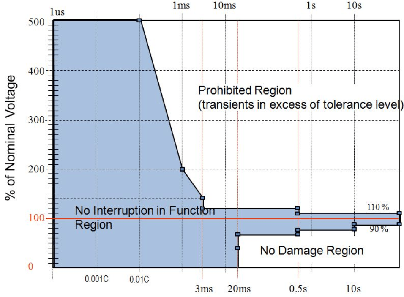

ITIC (Information Technology Industry Council)

信息技術工業委員會

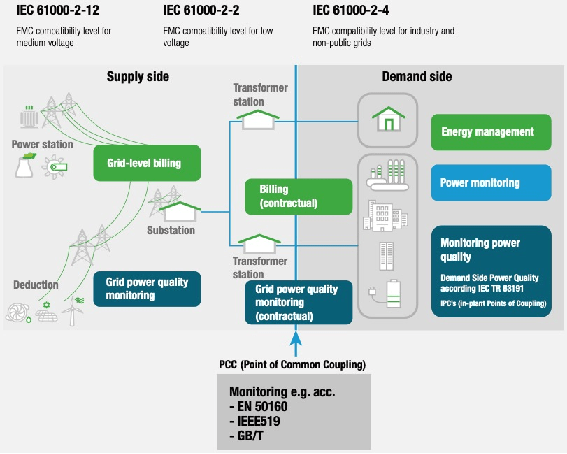

PCC (point of common coupling, contract level)

公共耦合點

IPC (in-plant points of coupling,internal distribution level )

工廠內的耦合點

電能質量標準符合

EC (international electrotechnical commission)

國際電工委員會

EN (European norm)

歐洲標準

IEEE SA (the institute of electrical and electronics engineers standards association)

電氣和電子工程師協會 標準協會

UL (Underwriteries Laboratories)

美國安全檢定實驗室

DIN (Deutsches Institut für Normung)

德意志標準化協會

標準名稱

EN50160 voltage characteristics of electricity supplied by public distribution systems

公共配電系統供電的電壓特性

IEC61000-4-30 EMC part 4-30 testing and measurement techniques- power quality measurement methods

測試和測量技術-電能質量測量方法

IEC62586-1 power quality measurement in power supply systems-part 1 power quality instruments (PQI)

電源系統中的電能質量測量-首部分電能質量?jī)x器

IEC62586-2 power quality measurement in power supply systems-part 2 functional tests and uncertainty requirements

電源系統中的電能質量測量-第二部分功能測試和不確定度要求

IEC61000-4-7 EMC part 4-7 testing and measurement techniques- general guide on harmonics and interharmonics measurements and instrumentation ,for power supply systems and equipment connected thereto

EMC 第4-7部分測試和測量技術-諧波和間諧波和儀器儀表的一般指南，用于電源系統和與之相連的設備

IEC61000-4-15 EMC part 4-15 testing and measurement techniques- flickermeter-functional and design specifications

EMC 第4-15部分測試和測量技術-閃爍計-功能和設計規范

IEC61000-2-2 EMC environment-compatibility levels for low-frequency conducted disturbances and signalling in public low-voltage power supply systems

EMC 環境-公共低壓供電系統中低頻傳導干擾和信號的兼容性水平

IEC61000-2-4 EMC part 2-4 environment-compatibility levels in industrial plants for low-frequency conducted disturbances (three classes)

EMC 第2-4部分環境-工業廠房中低頻傳導干擾的兼容性水平(支持三種等級)

IEC61000-2-12 EMC part 2-12 environment-compatibility levels for low-frequency conducted disturbances and signalling in public medium-voltage power supply systems

EMC 第2-12部分環境-公共中壓供電系統中低頻傳導干擾和信號的兼容性水平

IEC61000-6-4 EMC part 6-4: emission standard for industrial environments

EMC 第6-4 部分：工業環境排放標準

IEC61000-6-5 EMC part 6-5: immunity for equipment used in power station and substation environment

EMC 第6-5 部分：對電站和變電站環境中使用的設備的抗擾度

IEC61557-12 electrical safety in low voltage distribution systems up to 1000V AC and 1500V DC-equipment for testing,measuring or monitoring of protective measures-part 12: power metering and monitoring devices (PMD)

最高到1000V AC和1500V DC的低壓配電系統的電氣安全-測試，測量或監測保護措施的設備-第12部分：功率計量和監控設備

IEC TR 63191 demand side power quality management

需求側電能質量管理

IEC62053-22 electricity metering equipment-particular requirements-part 22: static meters for ac active energy(classes 0,1S,0,2S and 0,5S)

電能計量設備-特殊要求-第22部分：交流有功電能靜態儀表（0,1S,0,2S 和 0,5S等級）

IEC62053-24 electricity metering equipment-particular requirements-part 24: static meters for fundamental component reactive energy (classes 0,5S,1 S ,1, 2 and 3)

電能計量設備-特殊要求-第24部分：基波分量無功電能靜態儀表(0,5S,1 S ,1, 2 and 3等級)

IEC62053-31 pulse output devices for electromechanical and electronic meters(S0 output)

機電和電子表計的脈沖輸出裝置（S0 輸出）

EN60297 mechanical structures for electrical and electronic equipment-dimensions of mechanical structures of the 482,6mm(19inch)series

電氣和電子設備的機械結構- 482,6mm 19寸系列機械結構尺寸

IEEE519 harmonic control in electric power systems

電氣系統中的諧波控制

IEEE1159 recommended practice for monitoring electric power quality

監測電能質量的推薦方法

IEEE1459 definitions for the measurement of electric power quantities under sinusoidal,nonsinusoidal,balanced,or unbalanced conditions

正弦，非正弦，平衡或不平衡條件下電氣量測量的標準定義

IEEE1453 standard for measurement and limits of voltage fluctuations and associated light flicker on ac power systems

交流電源系統上電壓波動和相關光閃爍的測量和限值標準

IEC60051 direct acting indicating analogue electrical measuring instruments and their accessories

直接作用指示模擬電測量?jī)x器及其附件

EN50600-2-2 information technology-data center facilities and infrastructures-part 2-2 power distribution

信息技術-數據中心設施和基礎設施-第2-2部分配電

ENEL GSTQ001 fixed installed indoor power quality instrument

意大利國家電力公司固定安裝的室內電能質量?jī)x表

ENEL GSTQ002 extended power quality data interchange formats

意大利國家電力公司擴展電能質量數據交換格式

IEC60068-2-1/2/3/6/27 environmental testing-cold/dry heat/damp test/vibration/shock
環境測試-冷/干熱/潮濕測試/振動/沖擊

IEC60529 degrees of protection provided by enclosures (IP code)

外殼提供的保護程度（IP 等級）

IEC61131-2 industrial-process measurement and control–programmable controllers-part 2: equipment requirements and tests (digital inputs/outputs 12/24v DC)

工業-過程測量和控制-可編程控制器-第2部分：設備要求和測試 (數字輸入/輸出 12/24v DC)

UL94 standard for safety of flammability of plastic materials for parts in devices and appliances testing

設備和電器測試中零件的塑料材料可燃性安全標準

IEC60038 IEC standard voltages

IEC 標準電壓定義和分類

2011/65/EU(RoHS) EU directive on the restriction of the use of certain hazardous substances

關于限制使用某些有害物質的指令

IEC61850 communication networks and systems for power utility automation

用于電力設施自動化的通信網絡和系統

IEC60688 electrical measuring transducers for converting AC and DC electrical quantities to analogue or digital signals

用于將交流和直流電量轉換為模擬或數字信號的電測量傳感器
